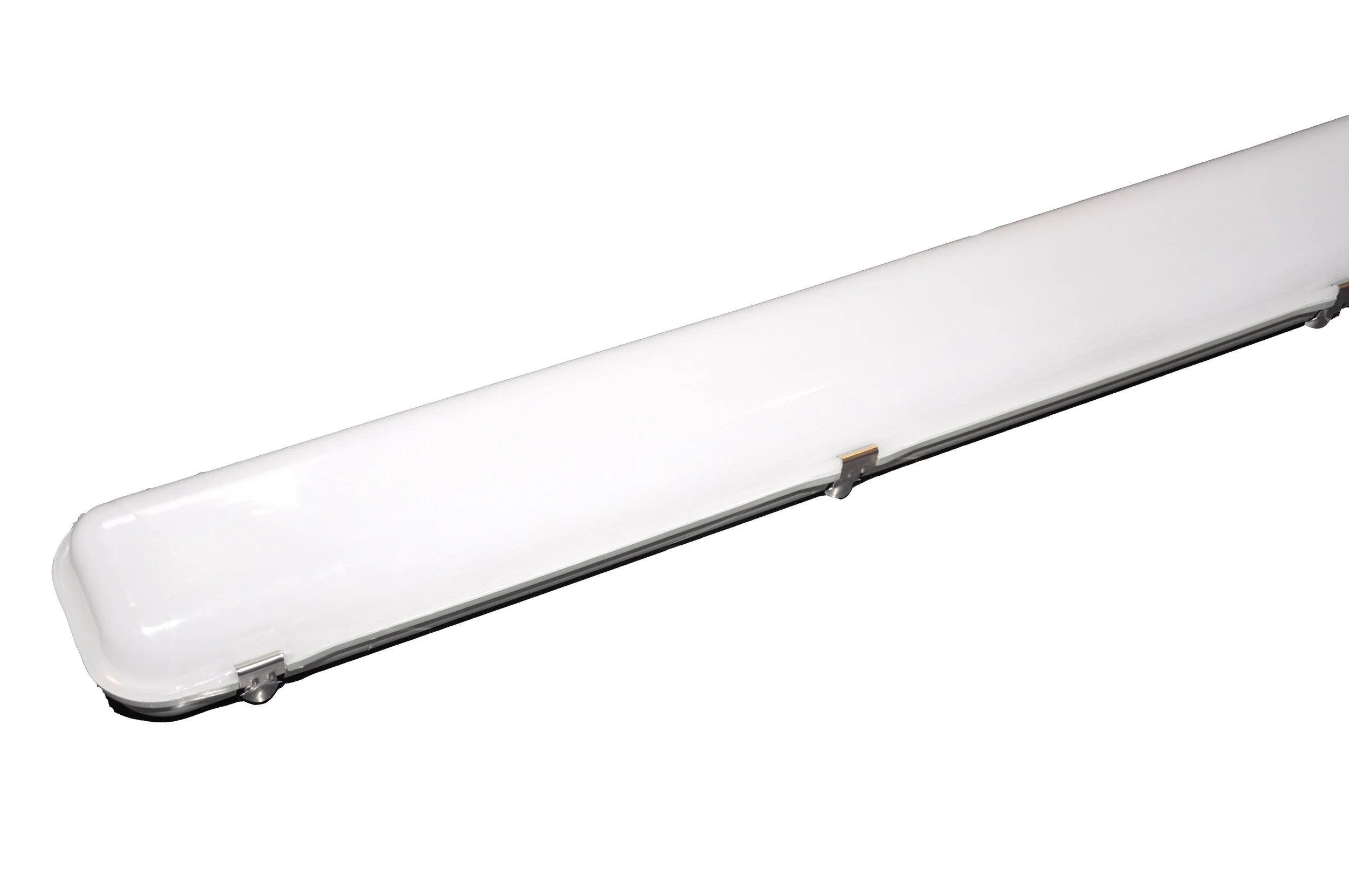

Cygnus

A robust luminaire suitable for use in both interior or exterior locations. The body is made from moulded ABS. Rated to IP65 for particle and moisture ingress and also rated to IK10 for impact strength. Can be used with an integrated occupancy sensor which will lower the light output to a predetermined level when the controlled space is unoccupied. Self-contained, Maintained Emergency conversions are also available.

  • Three part construction comprising an ABS body, an aluminium gear tray with a polycarbonate diffuser.

  • LED array is bonded directly to the gear tray for improved thermal performance.

  • Available with integrated Microwave sensor.

  • Ingress Protection rating: IP65

  • Impact Resistance rating: IK10

  • Power Consumption: 46W

  • Lumen Output: 4,000 lumens

  • Part Number: CYG-40

Options

  • 70W, 1.5m version, output 6.200 lumens (CYG-70)

  • 0W, 600mm version, output 2,000 lumens (CYG-20)

  • For Microwave Sensor add suffix MWS

  • For Emergency Conversion add suffix EMC
